About us
We develop, design, install and maintain industrial pasteurizing, proofing, cooling and freezing systems for the international food industry.
Whether single, low-capacity machines, a large-scale series of systems, or complex combination lines – our products are tailored to your needs.
We will either design and build a customised solution especially for you, or you can choose the high-quality standard system from one of our series, adapted to your requirements by utilizing numerous well-proven options.
- spiral pasteurizers.
- spiral proofers.
- spiral freezers.
- spiral coolers.
- fluidised bed freezers.
- multilevel box freezers.
Our product groups
Keywords
- spiral freezer
- spiral pasteurizer
- speicherfroster
- spiral cooler
- spiralgärer
Our Products

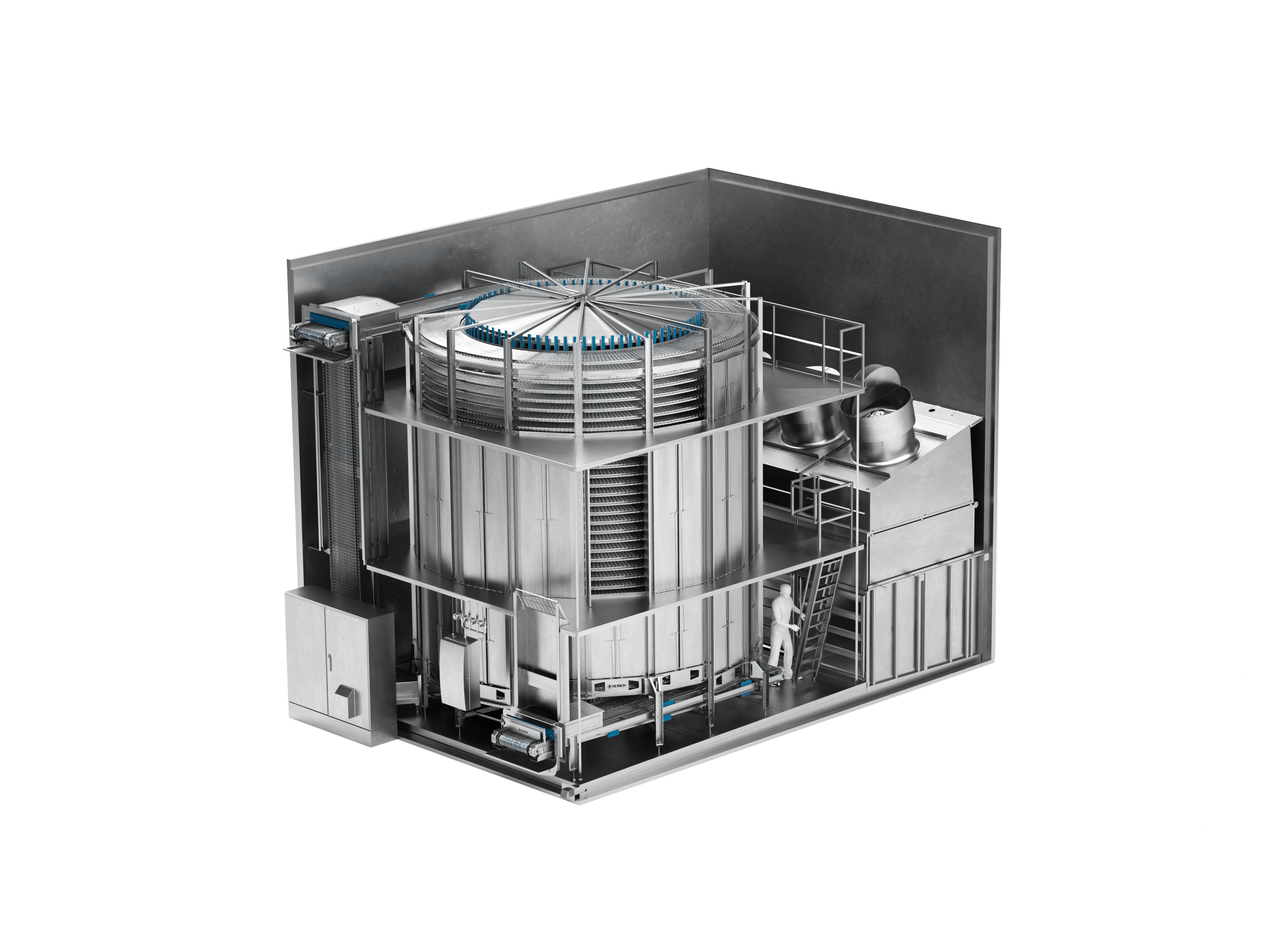

arctic. spiral freezer/spiral cooler
The spiral system for cooling and freezing of all kind of food products with various belt widths and tier pitches plus numerous options for medium and big capacities.
flexible.
As a single or double drum system, upwards or downwards conveying, four layouts and three system diameters, and installed on the factory floor, a foundation or on a frame, the arctic meets all requirements in terms of capacity and integration in process and building.
versatile.
The wall and ceiling panels of the insulation enclosure are lined in stainless steel, while the floor is designed as a fully seam-welded stainless steel tray with defined drains. The interior of the enclosure is accessed by means of an insulated stainless steel doors with contact switch and electric frame heating.
sophisticated.
The conveyor system can accommodate a variety of different belts. Stainless steel or plastic belts, with open or closed belt surface, with small or large pitches, and with or without side plates. The stainless steel and plastic belts can be retrofitted at a later date.
reliable.
Designed for industrial multi-shift applications, the highest degree of reliability is guaranteed by the smooth belt guidance via drum and frequency-controlled main drive and overdrive motors, the use of high-quality components, and the minimum of moving parts.
functional.
The arctic offers state-of-the-art PLC controls, several remote service and communication options, programming and saving of all product and system parameters in recipes, plus elaborate visualization (3D images of the system, temperature trends, etc.) on a colour touchscreen.
efficient.
At the end of each shift, defrosting can be carried out using hot gas or electrical heating methods. The snow blow-off system can extend the production time before defrosting becomes necessary. Sequential defrosting works continuously to allow production times of 144 h without interruption.
modular.
The simple belt cleaning system with a pump unit for increasing pressure generating foam can be progressively upgraded into an extended cleaning system or even further into a fully integrated cleaning system that cleans the entire interior in addition to the belt and conveyor system.
customised.
The arctic can be realized with numerous options, such as an insulating enclosure with a stainless steel exterior or a fully welded insulating enclosure, frequency-controlled fans, air cooler rinsing device, in asymmetrical layouts, or as a twin-belt system - custom-designed to meet your needs.

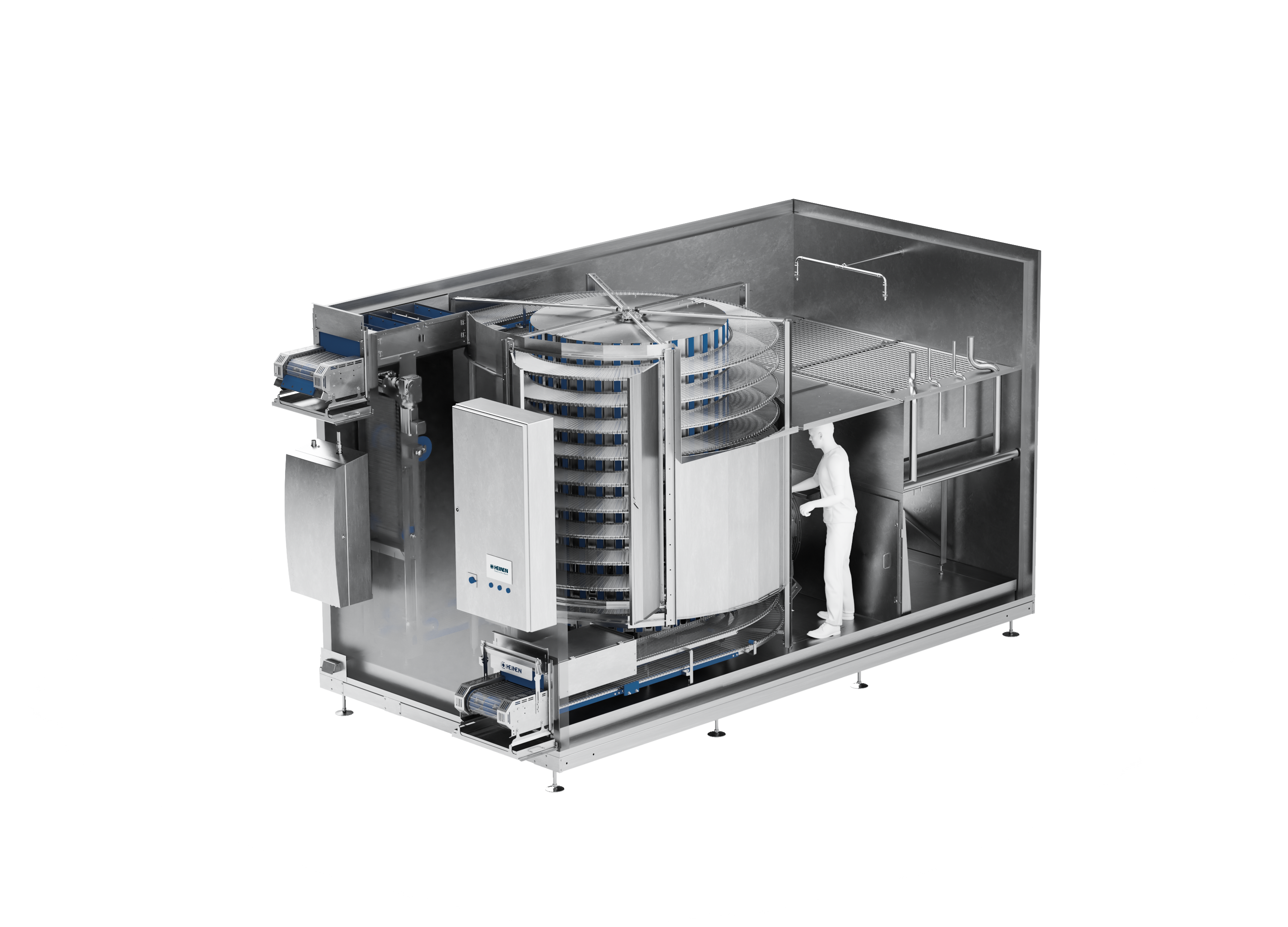

compact.® - spiral freezer / spiral cooler
The single drum system for cooling and freezing of all kind of food products with one belt width and four tier pitches for small capacitites.
flexible.
The compact.® offers flexible belt configurations in three different layouts, rotating clockwise or counter-clockwise and upwards or downwards conveying. The number of tiers can be adapted to the particular product and capacity.
sophisticated.
The wall and ceiling panels of the insulating enclosure are lined inside with stainless steel, while the floor consists of a fully seam-welded stainless steel tray with defined drains. The unit can be accessed by means of two stainless steel doors in the insulating enclosure with contact switches and an electrical frame heating.
versatile.
The conveyor system can accomodate a variety of different belts. Stainless steel or plastic belts, with open or closed belt surface, with small or large pitches, and with or without side plates. The stainless steel and plastic belts can be retrofitted at a later date.
mobile.
The compact.® comes fully assembled on a base frame. The system is ready for use as soon as the media, such as power, refrigerant and water (for models with clkeaning system only) have been connected. The base frame allows it to be moved from one location to another quickly and easily.
functional.
Equipped with a mini PLC and a graphic multifunctional display, all of the system parameters can be set precisely. Frequency-controlled main and auxiliary drives enable infinitely variable regulation of the belt speed and, thus, the retention times.
efficient.
Every compact.® can be defrosted with fan-driven air once the refrigerant has been switched off. Furthermore, the defrsting process can be enhanced and carried out more efficiently by means of hot gas or electrical heat.
modular.
The simple belt cleaning system, with a pump unit for increasing pressure generating foam can be progressively upgraded into an extended cleaning system or even further into a fully integrated cleaning system that cleans the entire interior in addition to the belt and the conveyor system.
adaptable.
Whether equipped with a loading conveyor for the transfer of form sensitive products onto the already collapsed belt, a horizontal infeed conveyor for safe delivery at the infeed or discharge conveyor for the downstream system - the compact adapts perfectly to every layout.
customised.
The compact.® can be realized with numerous options, such as the frequency-controlled fans, touchscreen controls, stainless steel base frame or insulating enclosure with stainless steel exterior. Customised according to your wishes and requirements.

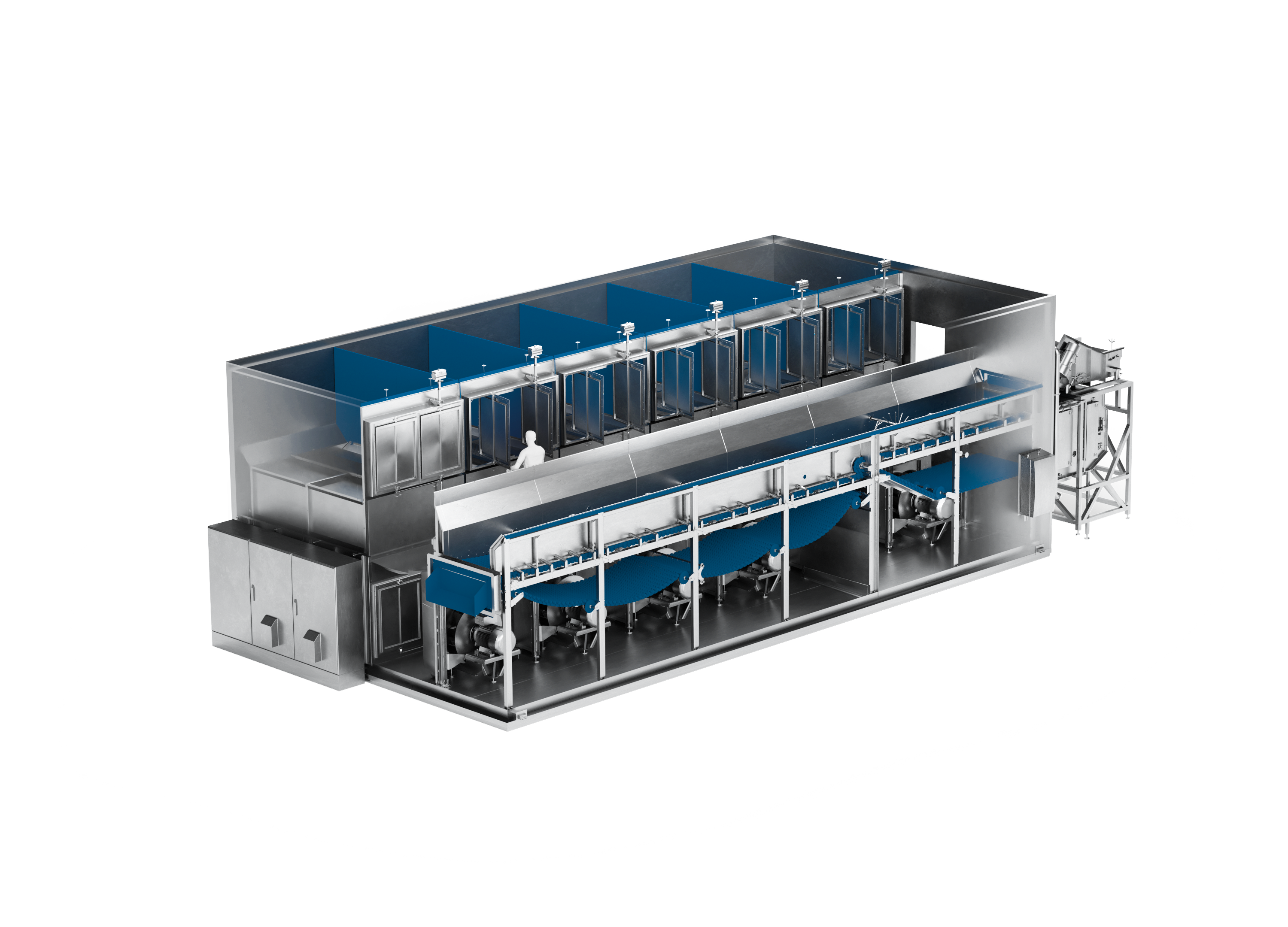

blizzard. - fluidised bed freezer
The fluidized bed system for cooling and freezing of bulk products with two belt widths and various system lengths plus numerous options for medium and big capacities.
flexible.
Due to the different number of modules in the pre-freezing and main freezing zone, the system can be designed exactly for the desired product and performance. Frequency-controlled drives provide the flexibility necessary to handle different products in a single system.
sophisticated.
The wall and ceiling panels of the insulating enclosure are lined in stainless steel, while the floor is designed as a fully seam welded stainless steel tray with defined drains. The interior of the enclosure is accessed by means of three insulated stainless steel doors with contact switch and electric frame heating.
versatile.
Ligth or heavy, soft or hard, or brittle and shape-sensitive - every product is different. The blizzard can accommodate a variety of different belts made of stainless steel or plastic. The stainless steel and plastic belts can be retrofitted at a later date.
practical.
Pre-assembled modules allow fast installation as well as installation in practically any production line arrangement at the same time. Installed on the floor, on a foundation, or on a frame, the blizzard is the ideal system for high and very high capacities.
functional.
The blizzard offers state-of-the art PLC controls, several remote service and communication options., programming and saving of all product and system parameters in recipes, plus elaborate visualization (3D images of the system, temperature trends, etc.) on a colour touchscreen.
efficient.
Every blizzard can be defrosted with air using the fans when the refrigerant supply is switched off. Furthermore, it is possible to support and efficiently perform the defrosting process using hot gas or electrical heating elements. The snow blow-off system can lengthen the production time withou defrosting.
modular.
The simple belt cleaning system with a pump unit for increasing pressure generating foam can be progressively upgraded into an extende cleaning system or even further into an extended cleaning system that cleans besides the belt and the conveyor system also the entire interior.
customised.
The blizzard can be realized with numerous options, such as an insulating enclosure with a stainless steel exterior or a fully welded insulating enclosure, camera inspection,an extend infeed for continuous belt cleaning or a snow and particle belt filter - custom designed to meet your needs.

compact.®duo - spiral freezer / spiral cooler
The twin drum system for cooling and freezing of all kind of food products with one belt width and four tier pitches for small and medium capacities.
see compact.®

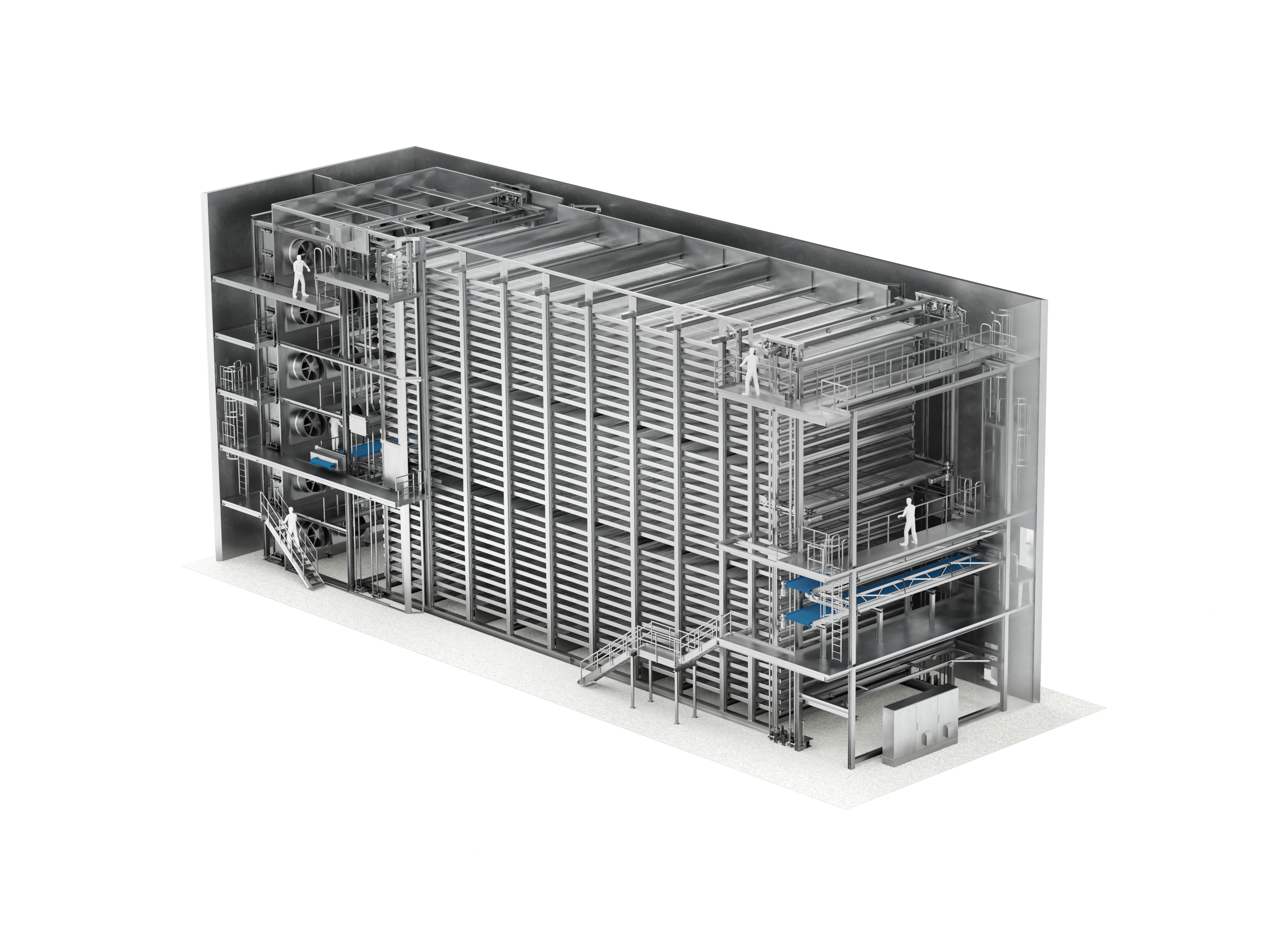

packfrost.® - multilevel box freezer
The multilevel buffer system for cooling and freezing of goods packaged in cartons or plastic boxes in two system widths with various numbers of levels for high capacities.
modular.
Different shelf sizes and a storage system that is variable in terms of the number of stacked levels and the number of shelfs in a row allows a
modular system design according to the required freezing capacity and number of storage locations as well as the overall dimension.
functional.
The packfrost offers state-of-the-art PLC controls, several remote service and communication options, programming and saving of all product and system parameters.
Plus elaborate visualization (3D images of the system, overview of products in the system, etc.) on a colour touchscreen.
adaptable.
The products can be stored in order or randomly. All levels are freely selectable and can be assigned to products with same retention time. The system can be optimally adapted
to reduced production outputs using the block operation mode.
independent.
The products are moved on the shelfs in a manner that is gentle to the packaging and provides you with considerable freedom in the selection of package sizes and package types.
You can therefore simultaneously cool or freeze products in cartons, in trays, or in plastic containers (e.g. E1, E2, or E3) in a single system.
energy-saving.
The continuous monitoring of the thermal load in the system enables the intelligent control of the number of active fans, the air speed, and
the air volume. When the demand drops, entire air cooling units are switched off and actively defrosted.
economical.
Air coolers with reduced pressure losses and a flow-optimised cold air circulation ensure conomical operation of the system. Active air
locks on every input and output of the system as well as sequential defrosting guarantee continuous operation 365 days a year.
intelligent.
The integrated storage location management provides an overview of the number, position, and remaining retention times of the products.
Processes such as placing in storage, removing from storage, or both at the same time are pre-programmed and just as easy to call up as the programs for maintaining and diagnosing errors in the system.
reliable.
High operational reliability and outstanding system dynamics due to the systematic reduction of all movable parts and due to a drive
design that uses ultra-modern servo technology. Integrated incremental encoders enable exact positioning as well as continuous self-checks of
the system.
